Magnespec, Inc.
MIL-PRF-83446 Chip Inductors
Manufactured in accordance with Military Performance Specification MIL-PRF-83446 , these surface mount RF chip inductors cover a wide range of inductance from .010 µH to 10 mH. For maximum reliability under extreme environments, internal connections are welded, and inductors are transfer molded in epoxy. They are available with standard tin-lead solder termination finish and gold-plated finish, also, with and without extended termination tabs to facilitate mounting.
| SERIES |
SPECIFICATION |
LENGTH |
WIDTH |
HEIGHT |
INDUCTANCE |
| Series 5 |
MIL-PRF-83446/5 |
0.105 |
0.110 |
0.085 |
0.010 to 10 µH |
| Series 6 |
MIL-PRF-83446/6 |
0.105 |
0.110 |
0.100 |
12 to 1000 µH |
| Series 8 |
MIL-PRF-83446/8 |
0.105 |
0.110 |
0.070 |
0.010 to 100 µH |
| Series 10 |
MIL-PRF-83446/10 |
0.133 |
0.163 |
0.130 |
0.010 to 1000 µH |
| Series 11 |
MIL-PRF-83446/11 |
0.133 |
0.163 |
0.130 |
0.10 to 10000 µH |

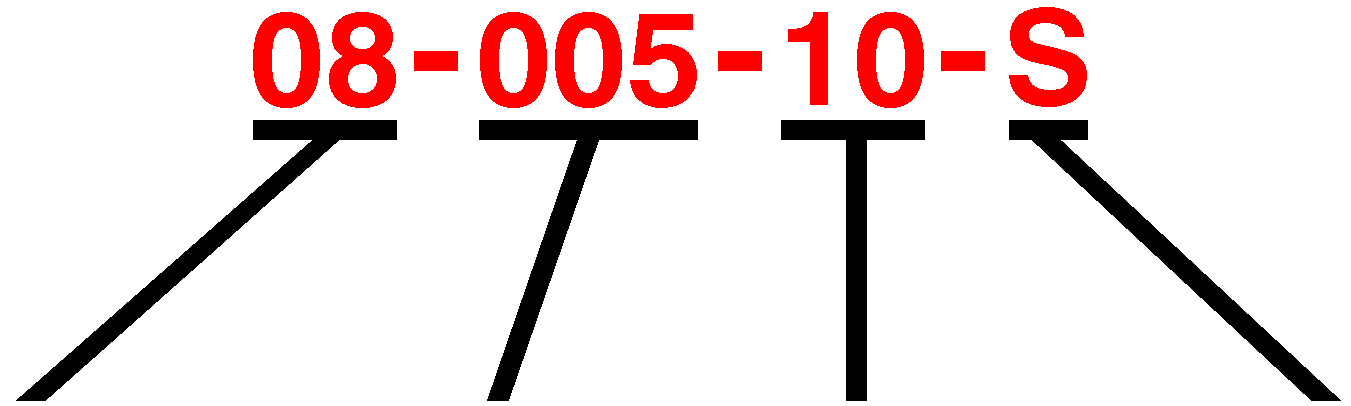

Part numbering system:
| Series No. |
Dash No. |
Inductance |
Termination Type |
| 05 = MIL-PRF-83446/5 |
|
Tolerance |
S = tin-lead solder |
| 06 = MIL-PRF-83446/6 |
|
(%) |
G = gold |
| 08 = MIL-PRF-83446/8 |
|
|
|
| 10 = MIL-PRF-83446/10 |
|
|
|
| 11 = MIL-PRF-83446/11 |
|
|
|
